If you’re working in machining, manufacturing or mechanical design, few tools are as central — yet misunderstood — as the humble ACME Tap. In this blog, we’ll dive deep into what makes ACME taps special, explore their features and benefits, and look at the many applications where they excel. Whether you’re a seasoned machinist or just learning the ropes, this guide will help you understand why ACME taps are a go-to choice for internal threading in heavy-duty systems.

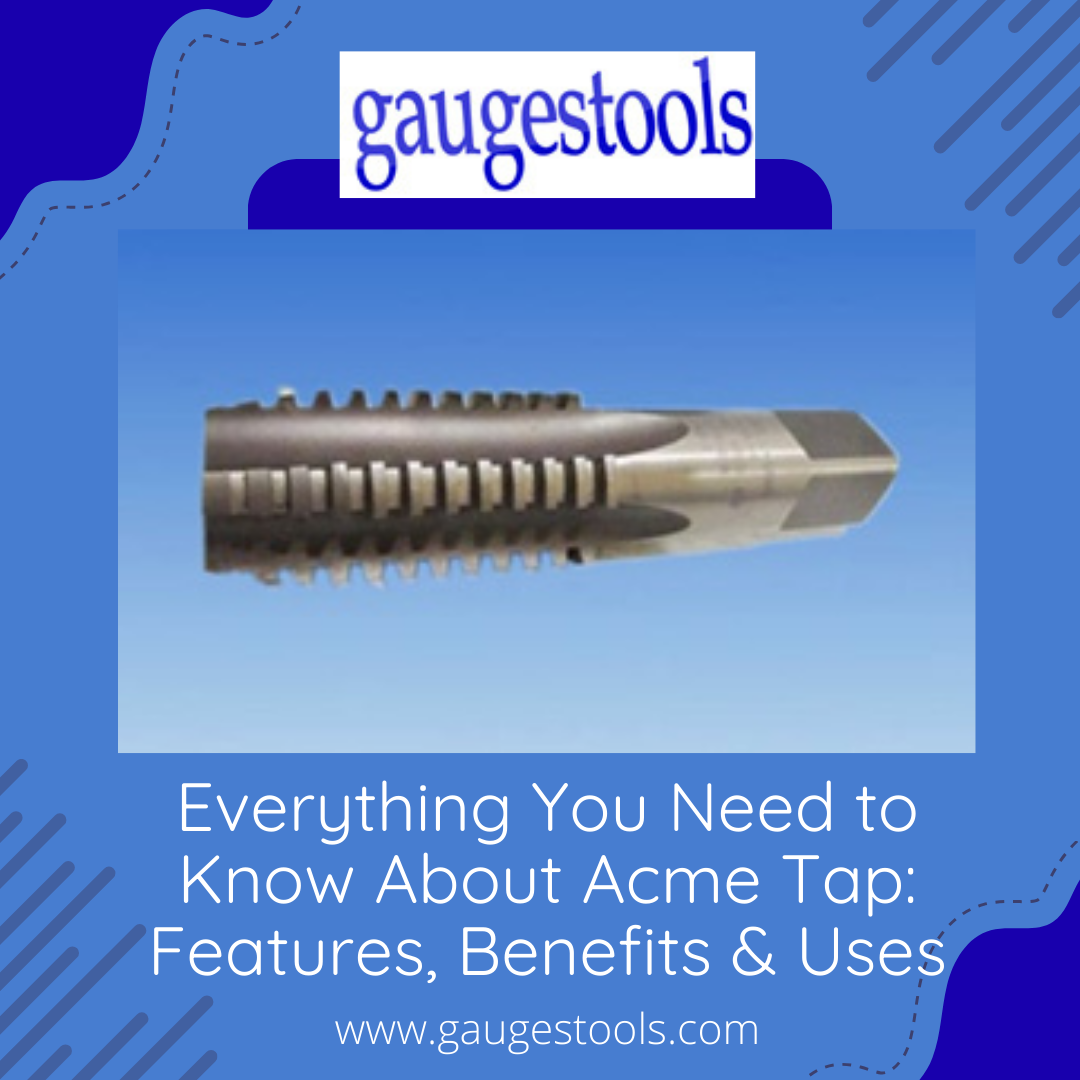

What Is an ACME Tap?
An ACME tap is a specialized threading tool used to generate an internal thread of the ACME profile (also sometimes called “Acme thread”). Unlike standard V-threads, ACME threads employ a trapezoidal profile — typically with a 29° thread flank angle and flat crest and root.
One of the primary reasons ACME threads (and therefore ACME taps) exist is to supersede older threading systems like square threads, which — although efficient — are difficult and time-consuming to manufacture. The ACME form delivers a strong, load-bearing, and more easily machined alternative.
Key Features of ACME Taps
From the Gaugestools, and additional industry sources, here are the major features that define ACME taps:
-
Thread profile & angles: ACME threads have a 29° included thread angle; the thread height is half of the pitch, and both the crest and root are flat.
-
Material & durability: ACME taps are typically manufactured from HSS (High Speed Steel) or HSS-E. These materials provide good wear resistance, which helps in maintaining tap life and consistent thread quality over repeated use.
-
Multiple types & sizes: ACME taps come in a variety of types — such as taper taps, plug taps, and bottom taps — to suit different threading jobs (through holes, blind holes, or various hole depths).
-
Right-hand (RH) and Left-hand (LH) versions: While RH taps are default, LH taps are also available for special applications requiring reverse threaded holes.
-
Customizable coatings: While many taps are supplied bright (uncoated), coatings (e.g. TiN, TiAlN) can be applied per user requirements to improve tool life or performance.
-
Thread-fit classes: ACME taps are often manufactured to standard classes of fit such as 2G, 3G, or 4G — specifying tolerance and fit quality for mating external threads.
According to the reference at Gaugestools, ACME taps are widely used in mass production because they offer a “low-cost tool, less dependent on operating workers, and higher thread accuracy.
Why Use ACME Threads — and by extension, ACME Taps?
Understanding the thread profile is only part of the story; what really makes ACME threads and taps valuable is their performance under load, durability, and versatility. Here’s what you gain when you choose ACME taps for your threading jobs:
1. High Load-Bearing and Strength
Because the trapezoidal profile distributes load over a broader base and the threads are robust (with half-pitch height, flat root/crest, and 29° flanks), ACME threads can handle significant axial loads, torque, and stress.
This makes them ideal for heavy machinery, jacks, presses, and other load-bearing systems where standard V-threads might strip or wear out quickly.
2. Durability and Wear Resistance
With larger contact areas and less stress concentration compared to sharper V-threads, ACME threads are more resistant to wear — especially under repeated load, vibration, or frequent assembly/disassembly cycles.
Using quality ACME taps (e.g. HSS or HSS-E) ensures that these advantages are maintained over many threading cycles, which is critical for industrial production or maintenance-heavy environments.
3. Smooth, Reliable Motion — Excellent for Lead Screws & Motion Systems
ACME threads excel where linear translation or controlled motion is required — like lead screws in machine tools, CNC machines, jacks, lifts, or valves. The geometry helps provide smoother motion, reduced backlash, and often a self-locking effect (depending on clearance and class of fit) — reducing the risk of unintended movement under load.
This reliability and precision make ACME taps and threads a top choice for motion control systems, linear actuators, and heavy-duty mechanical assemblies.
4. Cost-Effectiveness and Ease of Production
Compared to square threads (which are technically efficient but difficult to manufacture), ACME threads are easier and cheaper to produce because their angled/trapezoidal form works well with standard cutting tools and processes.
For manufacturers — especially when producing many threaded parts — this translates into lower tooling cost, faster production cycles, and easier standardisation. As emphasised by Gaugestools, this combination of affordability, accuracy, and reduced operator dependency makes ACME taps ideal for mass production environments.
Common Uses & Applications of ACME Taps
Because of their strength, reliability, and versatility, ACME taps find use in a wide array of applications across industry. Some common use-cases include:
-
Lead screws and machinery: In lathes, milling machines, CNC machines, jackscrews — any system that requires precise linear motion under load.
-
Jacks, presses, and lifting devices: For power transmission where mechanical advantage and load-bearing capacity are critical.
-
Valves, clamps, vises and heavy-duty fixtures: Where robust, wear-resistant threaded joints are needed for secure clamping or control mechanisms.
-
Motion control systems and linear actuators: Including automation equipment, robotics, and industrial machinery, where repeatable, precise motion is vital.
-
Applications requiring stability under frequent assembly/disassembly or load reversal: The robustness of ACME threads helps maintain integrity over many cycles, making them suitable for maintenance-heavy environments or adjustable systems.
Because ACME taps can be ordered in a wide variety of sizes and thread specifications (including right-hand and left-hand, different classes of fit, with or without coatings, and in through-hole or blind-hole configurations), they are adaptable to many different engineering needs.
Considerations When Using ACME Taps
While ACME taps offer many advantages, there are a few factors to keep in mind when selecting and using them:
-
Chip load and cutting forces: Because ACME threads are trapezoidal and broader, their cutting — especially in hard or thick materials — may produce heavy chip loads (if cutting rather than forming threads). Proper tool geometry, cutting speeds, and lubrication are important.
-
Hole preparation matters: For best results, the drilled hole dimensions, depth (through-hole vs. blind-hole), and material properties should be carefully specified before ordering ACME taps — especially if you want accurate internal threads. As per boards at Gaugestools, when ordering one should specify size, pitch, RH/LH, class of fit, material to be tapped, and hole info (through or blind, depth, etc.).
-
Fit class and thread quality: Choosing the correct class of fit (2G / 3G / 4G) is essential, depending on the tolerance, load, and application — tighter fits may yield less backlash but require more precise manufacturing.
-
Need for experience or adequate tooling: ACME tapping — especially for large sizes or hard materials — may demand careful technique, good equipment, and proper maintenance. Poor execution could lead to thread failures or tap breakage.
Why Gaugestools Stands Out As a Source (and Supplier)
If you’re searching for a reliable ACME tap supplier or want more in-depth info, Gaugestools emerges as a noteworthy source. Their documentation on ACME taps and thread-tap manufacturing gives clarity on the following: available sizes, tap types, materials (HSS and HSS-E), and thread fit classes (2G, 3G, 4G).
They also provide flexibility — whether you need a single tap or a full set (taper taps, plug taps, bottom taps), with or without coatings, for standard or custom specifications.
For engineers, machinists, or procurement teams — especially those sourcing internationally — the transparent options and detailed parameter requirements provided by Gaugestools help ensure you get exactly what your project demands, while benefiting from the inherent advantages of ACME tapping.
Conclusion
In the world of mechanical design and machining, the ACME tap is a smart, reliable, and cost-effective way to produce strong internal threads suited for heavy-duty, load-bearing, or motion-transmission applications. Its trapezoidal thread profile, robust materials, versatile design options, and adaptability across different sizes and requirements make it a go-to tool for applications ranging from lead screws and jacks to valves, fixtures, and linear motion systems.
Whether you’re building industrial machinery, automation systems, heavy-duty fixtures, or precision tools, using an ACME tap properly can save you time, reduce failure risk, and deliver consistent, durable threads. Gaugestools obtains quality ACME taps that meet specific threading requirements, and tolerances is more accessible than ever.
For anyone involved in machining or design, from beginners to seasoned professionals, understanding ACME taps and their uses is essential. With the right specifications, materials, and techniques, ACME tapping can be the backbone of reliable, long-lasting mechanical assemblies.
